PanelZoneSteelIShape Class Reference

Class that is the children of PanelZone and combine the class SteelIShape (section) to retrieve the information needed. More...

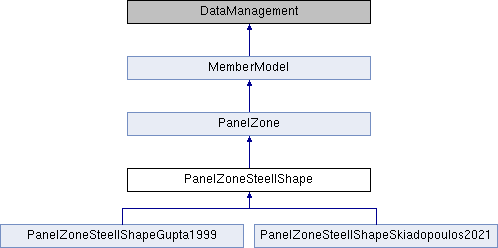

Inheritance diagram for PanelZoneSteelIShape:

Public Member Functions
def	__init__ (self, int master_node_ID, SteelIShape col, SteelIShape beam, int geo_transf_ID, int mat_ID, rigid=RIGID)
	Constructor of the class. More...
Public Member Functions inherited from PanelZone
def	__init__ (self, int master_node_ID, mid_panel_zone_width, mid_panel_zone_height, E, A_rigid, I_rigid, int geo_transf_ID, int mat_ID, pin_corners=True)
	Constructor of the class. More...
def	CreateMember (self)
	Method that initialises the member by calling the OpenSeesPy commands through various functions. More...
def	Record (self, str name_txt, str data_dir, force_rec=True, def_rec=True, time_rec=True)
	Implementation of the homonym abstract method. More...
def	RecordNodeDef (self, str name_txt, str data_dir, time_rec=True)
	Implementation of the homonym abstract method. More...
def	ReInit (self)
	Implementation of the homonym abstract method. More...
def	ShowInfo (self, plot=False, block=False)
	Implementation of the homonym abstract method. More...
def	UpdateStoredData (self)
	Implementation of the homonym abstract method. More...
def	Record (self, ele_ID, str name_txt, str data_dir, force_rec=True, def_rec=True, time_rec=True)
	Abstract method that records the forces, deformation and time of the member associated with the class. More...
def	RecordNodeDef (self, int iNode_ID, int jNode_ID, str name_txt, str data_dir, time_rec=True)
	Abstract method that records the deformation and time of the member's nodes associated with the class. More...

Public Attributes
	beam
	beam_section_name_tag
	col
	col_section_name_tag
Public Attributes inherited from PanelZone
	A_rigid
	beam_section_name_tag
	col_section_name_tag
	data
	E
	element_array
	geo_transf_ID
	I_rigid
	Initialized
	iNode_ID
	jNode_ID
	master_node_ID
	mat_ID
	mid_panel_zone_height
	mid_panel_zone_width
	pin_corners
	spring_ID

Detailed Description

Class that is the children of PanelZone and combine the class SteelIShape (section) to retrieve the information needed.

Parameters

PanelZone

Parent class.

Definition at line 279 of file MemberModel.py.

Constructor & Destructor Documentation

__init__()

def __init__	(		self,
		int	master_node_ID,
		SteelIShape	col,
		SteelIShape	beam,
		int	geo_transf_ID,
		int	mat_ID,
			rigid = RIGID
	)

Constructor of the class.

Parameters

master_node_ID	(int): ID of the master node (central top node that should be a grid node).
col	(SteelIShape): SteelIShape column section object.
beam	(SteelIShape): SteelIShape beam section object.
geo_transf_ID	(int): A geometric transformation (for more information, see OpenSeesPy documentation).
mat_ID	(int): ID of the material model for the panel zone spring.
rigid	(float, optional): Parameter with a value enough big to assure rigidity of one element but enough small to avoid convergence problem. Defaults to RIGID.

Reimplemented from PanelZone.

Reimplemented in PanelZoneSteelIShapeGupta1999, and PanelZoneSteelIShapeSkiadopoulos2021.

Definition at line 285 of file MemberModel.py.

    def __init__(self, master_node_ID: int, col: SteelIShape, beam: SteelIShape, geo_transf_ID: int, mat_ID: int, rigid = RIGID):
        """
        Constructor of the class.

        @param master_node_ID (int): ID of the master node (central top node that should be a grid node).
        @param col (SteelIShape): SteelIShape column section object.
        @param beam (SteelIShape): SteelIShape beam section object.
        @param geo_transf_ID (int): A geometric transformation (for more information, see OpenSeesPy documentation).
        @param mat_ID (int): ID of the material model for the panel zone spring.
        @param rigid (float, optional): Parameter with a value enough big to assure rigidity of one element
            but enough small to avoid convergence problem. Defaults to RIGID.
        """
        self.col = deepcopy(col)
        self.beam = deepcopy(beam)
        super().__init__(master_node_ID, col.d/2.0, beam.d/2.0, col.E, max(col.A, beam.A)*rigid, max(col.Iy, beam.Iy)*rigid, geo_transf_ID, mat_ID)

        self.col_section_name_tag = col.name_tag
        self.beam_section_name_tag = beam.name_tag
        self.UpdateStoredData()



Member Data Documentation

beam

beam

Definition at line 298 of file MemberModel.py.

beam_section_name_tag

beam_section_name_tag

Definition at line 302 of file MemberModel.py.

col

col

Definition at line 297 of file MemberModel.py.

col_section_name_tag

col_section_name_tag

Definition at line 301 of file MemberModel.py.

---

The documentation for this class was generated from the following file:

• /media/carmine/DATA/Programmi/OpenSeesPyAssistant/MemberModel.py
